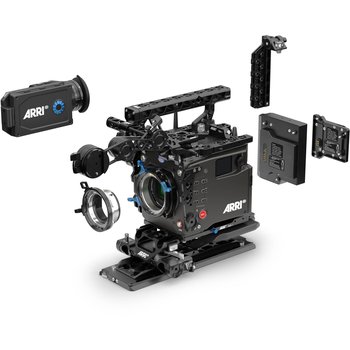

Arri Alexa 35 Production set avec :
- 3x Codex compat drive 1Tb + reader
- 3x batteries B-mount 14,4v /28,8V 290Wh
- 2x batteries B-mount 14,4v /28,8V 155Wh
- 1x hot swap B-mount 14,4v /28,8V 86Wh
- chargeur B-mount 4 voies
- plaque Apex pour steadicam et stabilsateurs
- Licence Ciné Alexa 35
- Monture LPL Alexa mini adaptateur Arri PL Vers LPL
- Balance Utility Dovetail BUD-1
- B-mount Battery Adapter
- Viseur Alexa Mini LF/35 MVF-2
- Cable viseur coudé 0.5m/1.5ft
- Cable Alim Alexa/Amira
- Power Distribution Module PDM-1
- Low Mode Support LMS-4
- Top Extension Bracket TEB-1
- Center Camera Handle CCH-5
- Square Accessory Sleeve SAS-1
- Viewfinder Mounting Bracket VMB-5
- Camera Side Bracket Right CSB-1R
- Camera Side Bracket Left CSB-1L
- Camera Side Bracket CSB-1R Extension
- Rod Mounting Bracket RMB-7
- Articulated Mounting Plate AMP-1
- Compact Bridge Plate CBP-5 19mm
- Plaque inferieure à décentrement 300mm
- Valise Alexa 35
| Lens Mount | ARRI LPL ARRI PL with Included Adapter |
| Lens Communication | Yes |
| Sensor Resolution | Not Specified by Manufacturer |
| Image Sensor | Super35 CMOS |
| Pixel Pitch | 6.075 µm |
| Image Stabilization | None |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| Internal Filter Holder | No |
| Capture Type | Video Only |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/8000 to 1 Second |
| ISO Sensitivity | 160 to 6400 |
| Shutter Angle | 5 to 356° |
| Advertised Dynamic Range | 17 Stops |
| White Balance | 2000 to 11,000K |
| Internal Recording Modes | ARRIRAW 4608 x 3164 from 0.75 to 75 fps 4608 x 2592 from 0.75 to 75 fps 4096 x 2304 from 0.75 to 120 fps 4096 x 2048 from 0.75 to 120 fps 3328 x 2790 from 0.75 to 100 fps 3072 x 3072 from 0.75 to 100 fps MXF/ProRes 422 HQ/ProRes 4444/ProRes 4444XQ 12-Bit 4608 x 3164 from 0.75 to 59.94 fps 4096 x 2304 from 0.75 to 100 fps 4096 x 2048 from 0.75 to 120 fps 3840 x 2160 from 0.75 to 120 fps 3328 x 2790 from 0.75 to 75 fps 3072 x 3072 from 0.75 to 90 fps 2048 x 1152 from 0.75 to 120 fps |
| External Recording Modes | None |
| Sensor Crop Modes | Super16 2K (2048 x 1152) |
| Sensor Crop While Recording | 4.6K (4608 x 2592) in 16:9 4K (4096 x 2048) in 2:1 4K (4096 x 2034) in 16:9 4K (4096 x 1716) in 2.39:1 When Recording in Anamorphic 3.8K (3840 x 2160) in 16:9 3.3K (3328 x 2790) in 6:5 3.8K (3840 x 1920) in 2:1 When Recording in Anamorphic 3K (3072 x 3072) in 1:1 2.7K (2743 x 3086) in 8:9 2K (2048 x 1152) in 16:9 1080p (1920 x 1080) in 16:9 |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve | ARRI Log C4, Rec 2100 HLG, Rec 2100 PQ, Rec709, Rec2020 |
| Built-In Microphone Type | Stereo |
| Audio Recording | 4-Channel 24-Bit 48 kHz LPCM Audio |
| IP Streaming | None |
| Media/Memory Card Slot | Single Slot: Codex Compact Drive |
| Video I/O | 1 x BNC (12G-SDI) Output 1 x BNC (12G-SDI) Input/Output |
| Audio I/O | 1 x LEMO 6-Pin Line Input 1 x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output |
| Power I/O | 1 x LEMO 8-Pin (20.5 to 33.6VDC) Input |
| Other I/O | 2 x CoaXPress Viewfinder 1 x LEMO 4-Pin Control Input/Output 1 x LEMO 4-Pin (Serial) Data Input/Output 1 x LEMO 5-Pin (Timecode) Input/Output 1 x LEMO 10-Pin (Ethernet) Control 1 x BNC (Sync) Input/Output 1 x USB-C Data Input/Output 1 x Pogo 5-Pin 1 x pogo 18-Pin |
| Wireless | Wi-Fi (802.11b/g) Control |
| Mobile App Compatible | Yes *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
| Global Positioning (GPS, GLONASS, etc.) | None |
| Size | 4" |
| Resolution | 800 x 400 |
| Display Type | Included External LCD |
| Secondary Display | Side: LCD Status Display |
| Type | Removable Electronic (OLED) |
| Resolution | 1920 x 1080 |
| Focus Type | Manual Focus Only |
| Operating Temperature | 12 to 77°F / -20 to 45°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Power Consumption | 90 W |
| Tripod Mounting Thread | 1/4"-20 Female 3/8"-16 Female |
| Material of Construction | Aluminum |
| Dimensions (W x H x D) | 8 x 6 x 5.8" / 203 x 152.5 x 147 mm |
| Weight | 6.4 lb / 2.9 kg |
